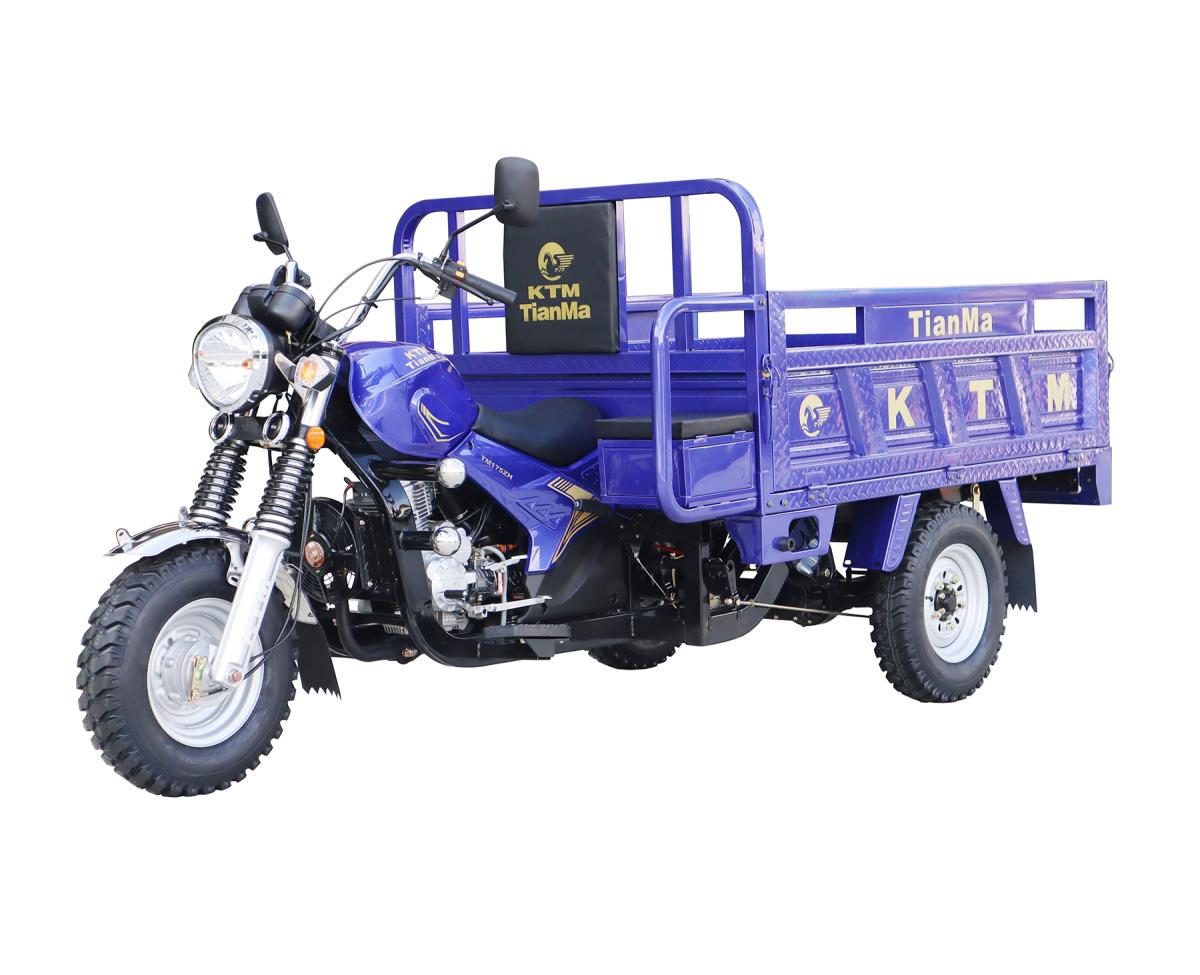

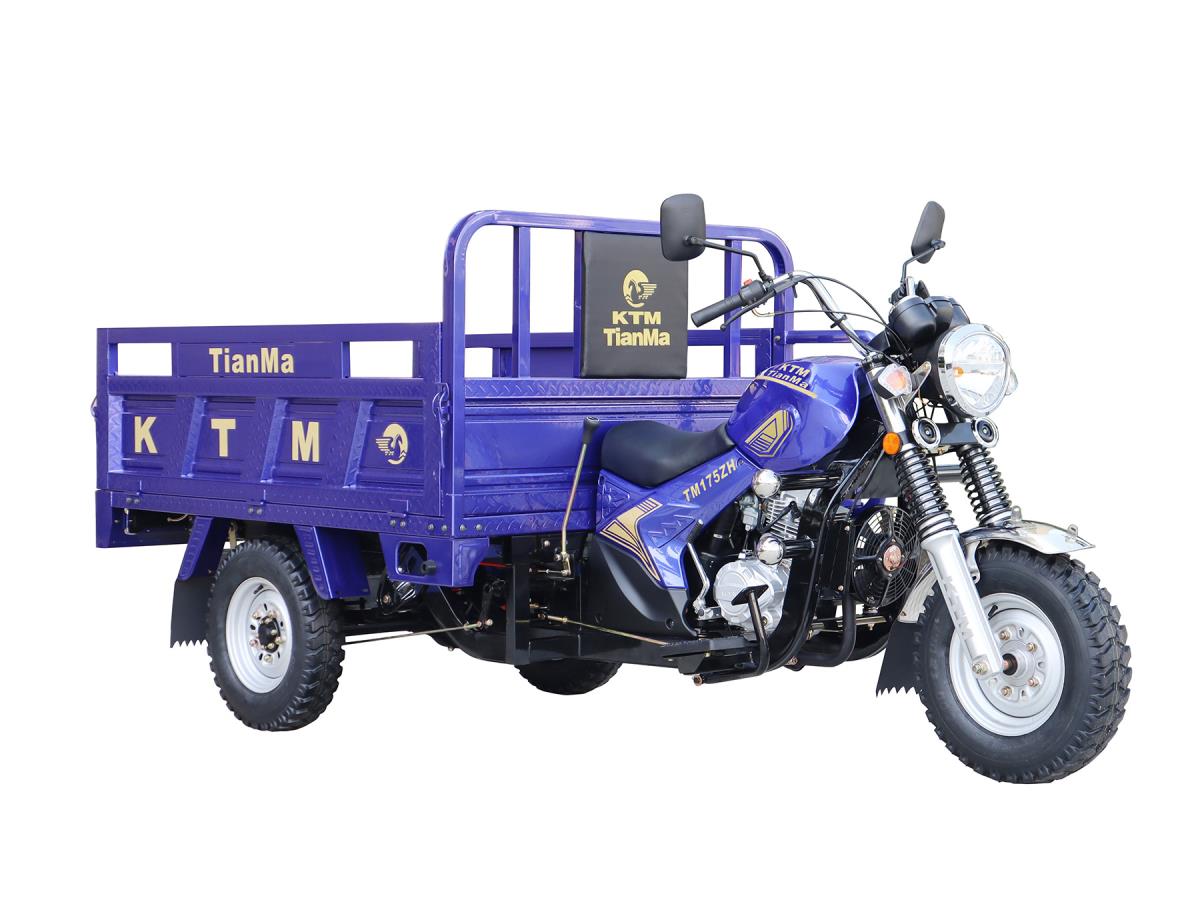

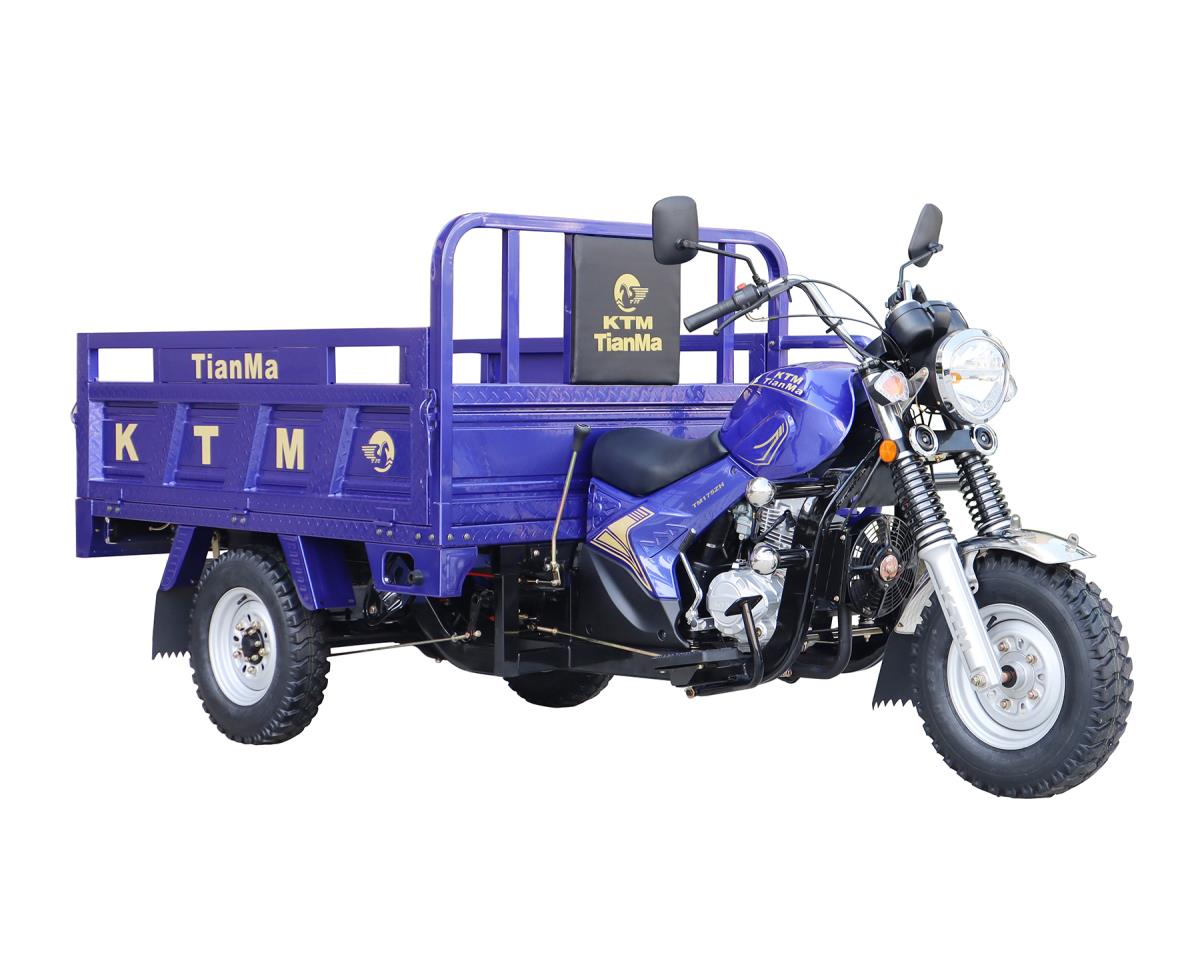

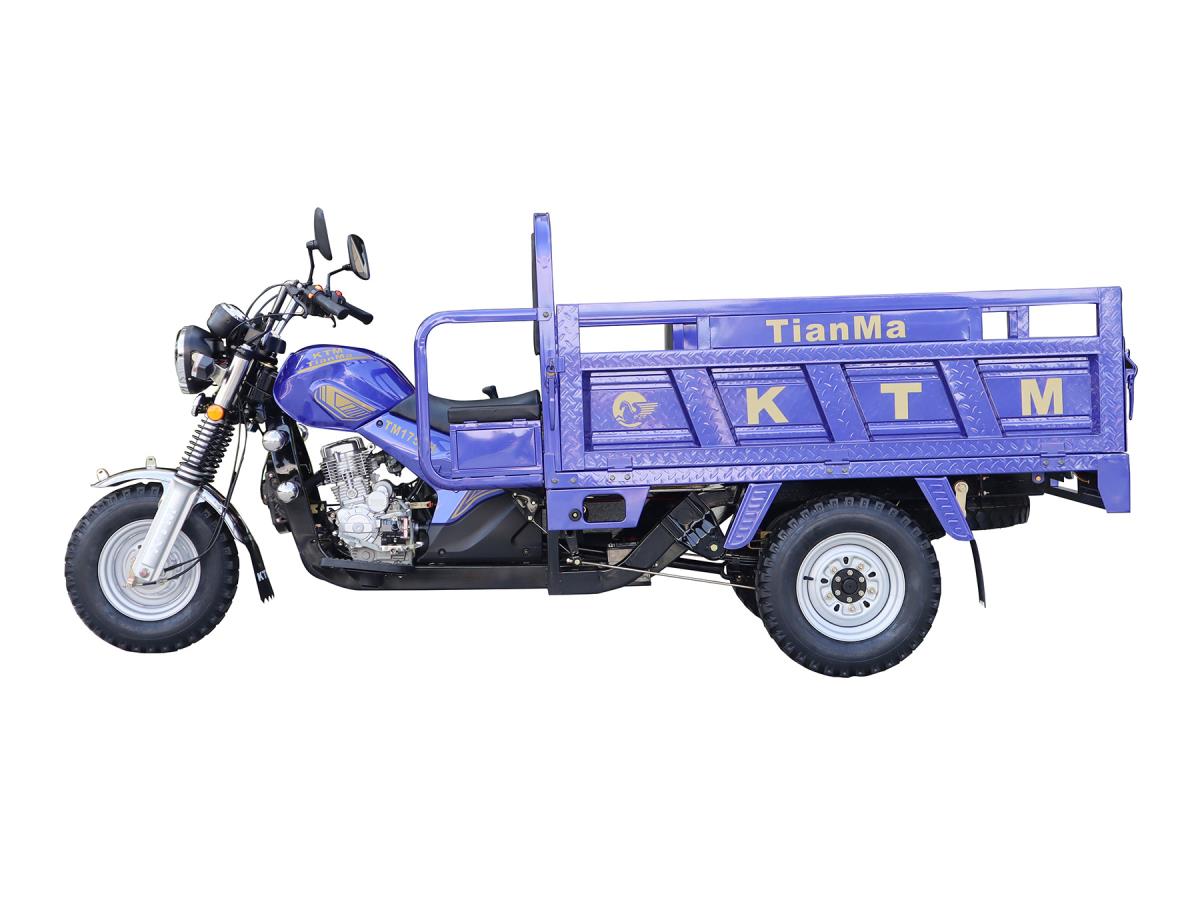

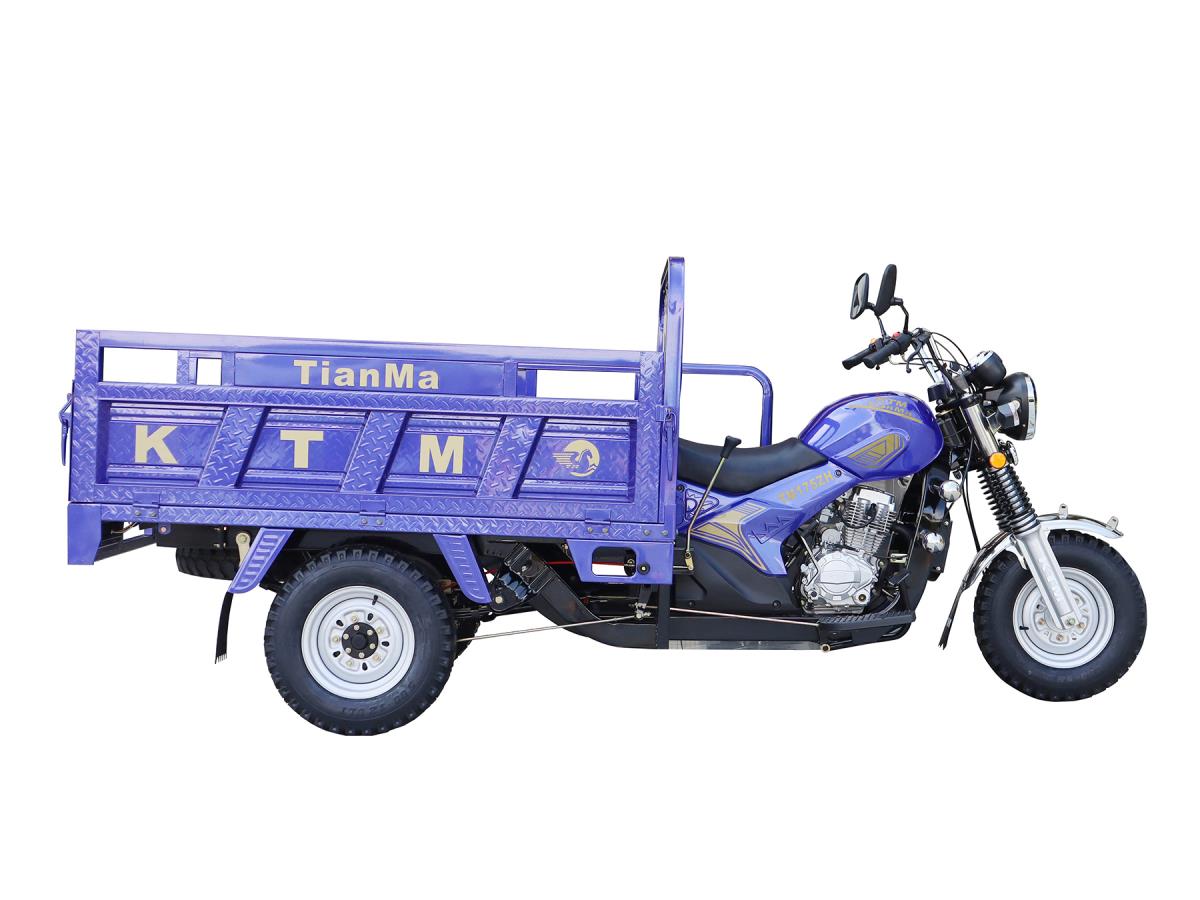

TM175ZH
HEAVY-DUTY 175CC ENGINE OFFERS STRONG POWER, MAKING FORWARD OR BACKWORD EASILY AND SMOOTHLY, EVEN WHITH FULL-LOADING GOODS.

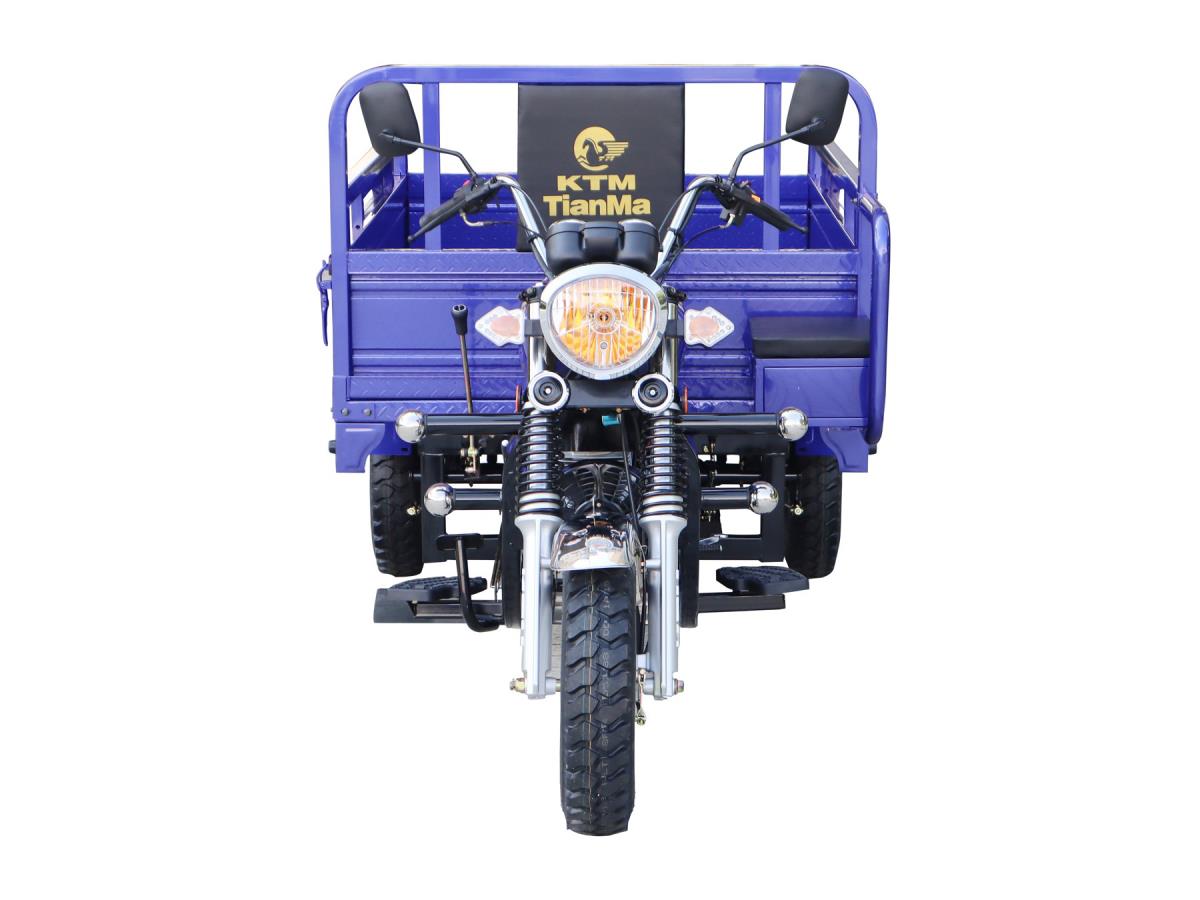

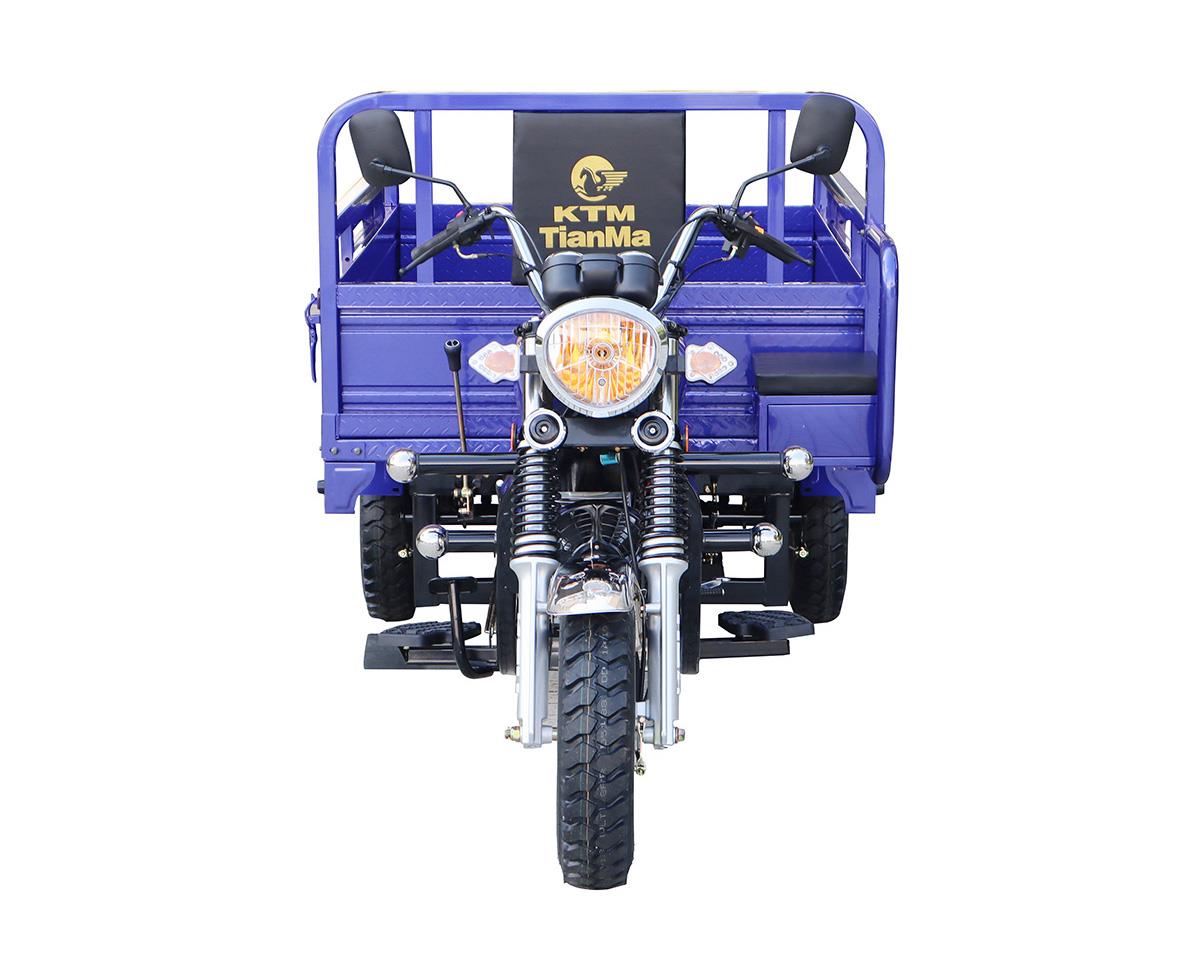

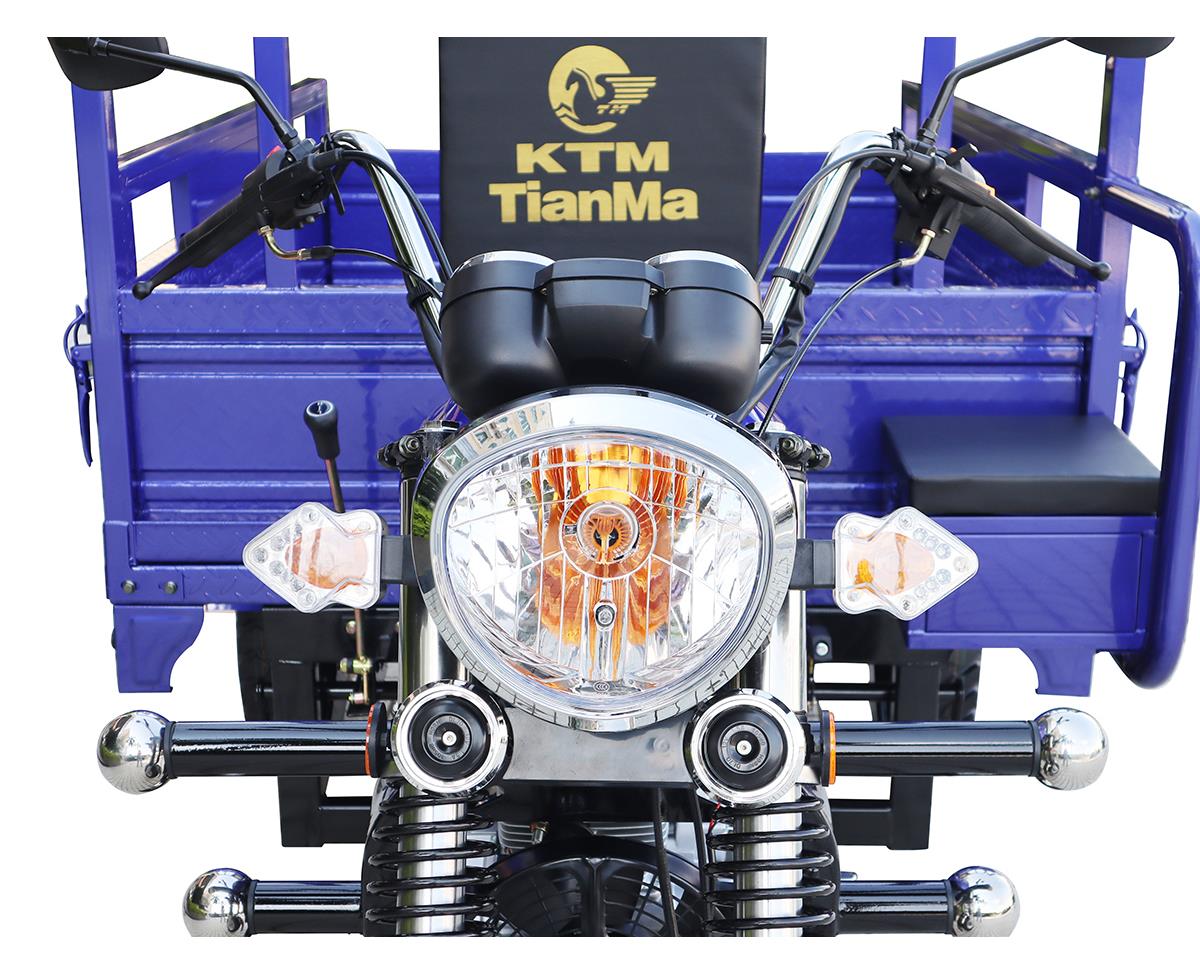

LARGER LED HEADLITH OFFERS HIGHER BRIGHTNESS, MAKING NIGHT DRIVEING SAFER
STRONG FRONT AND REAR SHOCK ABSORBERS HELP TO CARRY MUCH MORE PAYLOAD .

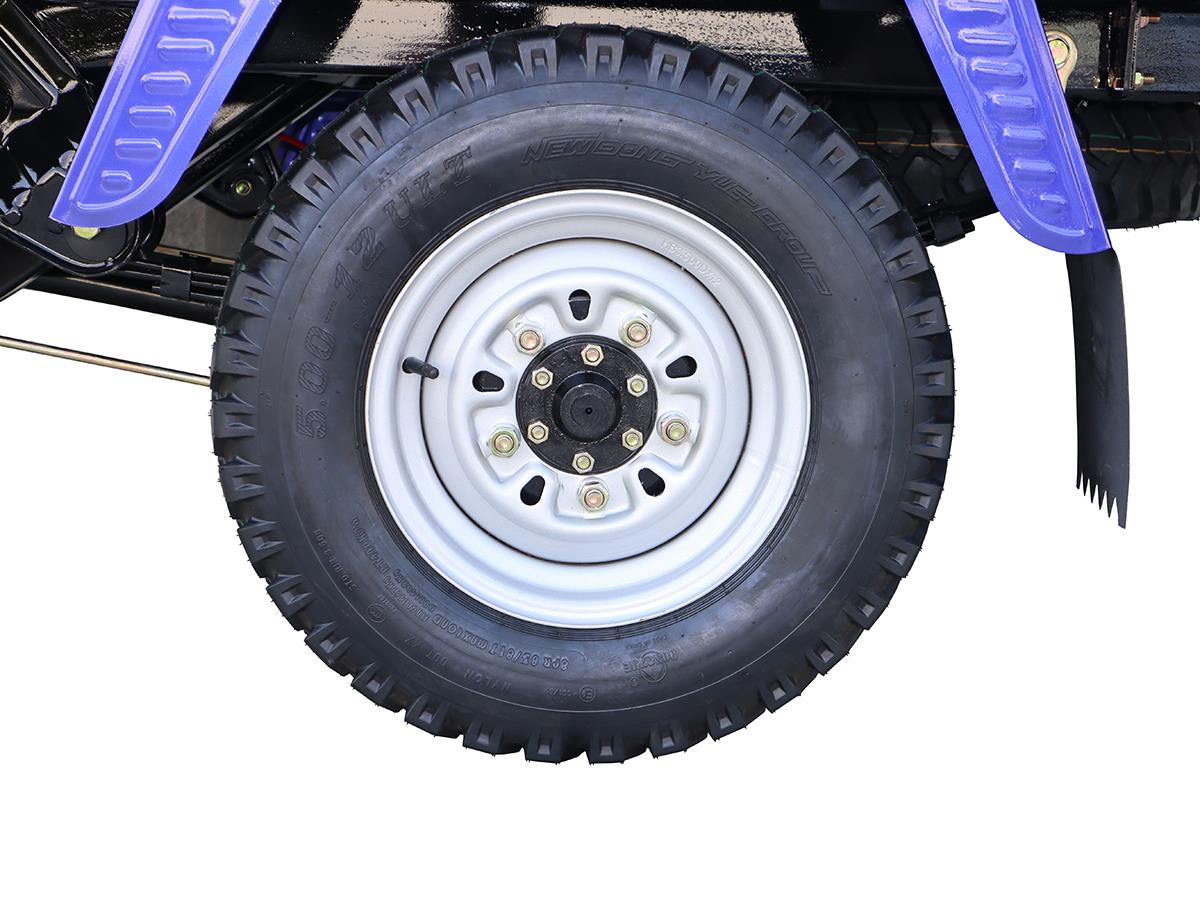

GOOD QUALITY WIDER DEEP-TREAD TIRES ARE SUITABLE FOR VARIOUS ROADS
Product Detail
OVERALL SIZE: 3435×1370×1440mm
SIZE OF THE CARRIAGE: 1800×1300mm
WHEEL BASE: 2190mm
REAR WHEELS TRACK WIDTH: 1140mm
GROUND CLEARANCE: 160mm
DRY WEIGHT: 410kg
SUGGESTED LOAD WEIGHT: 1000kg
ENGINE TYPE: 4 STROKE, AIR COOLED
DISPLACEMENT: 175
ACTUAL DISPLACEMENT: 175.1ml
BORE×STROKE: 62×58mm
COMPRESSION RATIO: 9.2:1
MAXIMUM POWER: 9.2kW/8000rpm
MAXIMUM TORQUE: 12N.m/6500rpm
ENGINE START: ELECTRIC START / KICK START
BRAKE(FRONT/REAR): DRUM / DRUM
TIRE SIZE（FRONT / REAR）: 5.00-12 / 5.00-12
BATTERY: 12v9ah
MAXIMUM SPEED: 70km/h
FUEL CONSUMPTION: ≤ 4.3L/100km
FUEL TANK: 20L
FUEL SYSTEM: CARBURETOR
TRANSMISSION: 60 SMALL FULL FLOATING REAR AXLE H&L SPEED 13:37
FRAME: 40*80 CHASSIS,WELDED BUMPER
FRONT SUSPENSION: 50 HYDRAULIC DAMPING WITH OUTER SPRING
REAR SUSPENSION: PLATE SPRING 5 PCS 70*800*62mm
